HI Q PARTS Sanding Rail Settable 4 Angle japan NEW

[※Caution]
It is a limited use tool for advanced users.
It is not necessary to assemble a commercially available plastic model kit.
It is a tool for users who do full scratching and plating.

It is suitable only for machining the end face.
It can be used to adjust the end face after preparing it with a hand tool such as a nipper to some extent until it becomes the desired shape.

There are small scratches, rubbing, processing dirt etc. at a level that does not hinder work.
Please note.

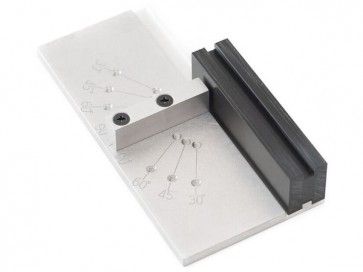

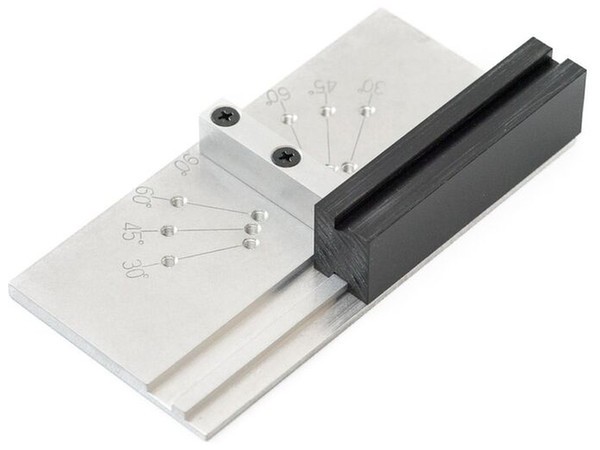

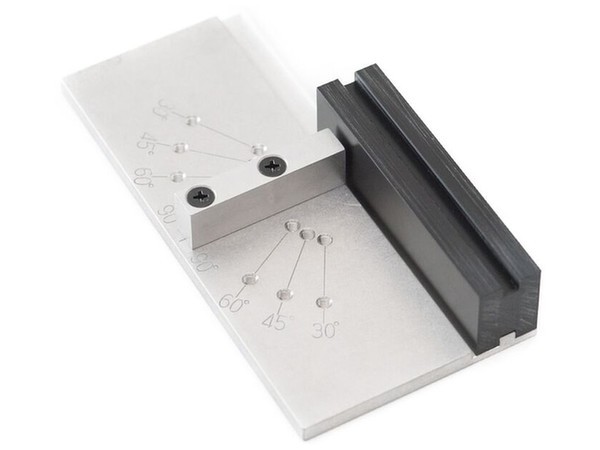

[Variable angle. Slide rail mounting file]

Slide the H type block with sandpaper attached on the aluminum pedestal rail and use it for polishing the end face of the object.

Frames of the guide for sending out the object can be fixed at any angle of 30 ° ・ 45 ° ・ 60 ° ・ 90 ° and pressed against the frame, polishing the object gradually with the finger and polishing it You can process to the angle of.

POM resin is adopted as a sliding block.
Because the coefficient of friction with the aluminum material used for the pedestal is extremely low, you can slide it smoothly and polish without using a lubricant.

The guide frame is box-packed in a state fixed at 90 °.
Reorientation of the angle is necessary once it arrives.

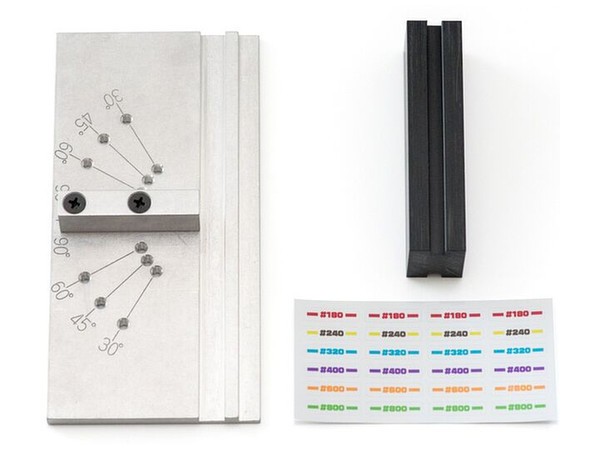

Product content:
Sanding slider (Aluminum base + guide frame + 2 screws) 1 piece
2 spare screws
1 sliding block
1 count number sticker
Logo seal (※ not in the photo)

For use, double sided tape (Nitto No. 5000 N 25 mm width recommended), sandpaper and Phillips screwdriver (No. 2) are required. Please purchase separately.

Use of other than the included screws is not recommended.

(From the HiQParts website)
