Tamiya CAM-PROGRAM ROBOT japan NEW

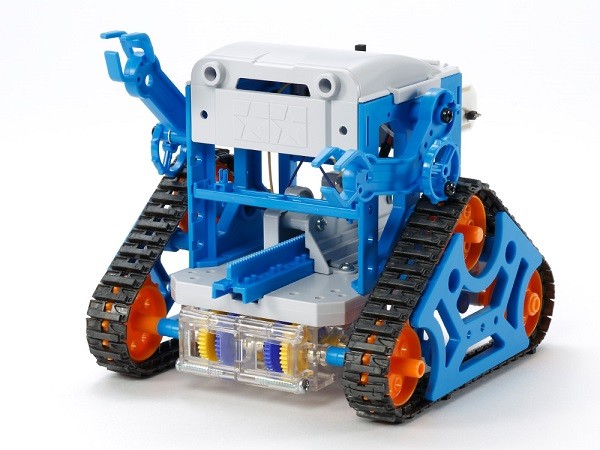

Total length = about 136 mm The picture is an assembled kit

【Let's program movement using cam! 】
It is an assembling kit of robotic work that can program movement using cams that can be freely set.
Set the power gear box with two motors under the main body, advance with a triangular crawler (crawler track), and the left and right arms also move.
Set the program bar with the cam inserted in the middle of the robot.
Program bar Move the bar with the gear case, mechanically read the arrangement of the cams, push the steering leg under the car body down, change the movement by floating the crawler.
The program bar can be controlled for about 35 seconds with one piece, and the control time can be extended by joining together.
All necessary parts are set and completed with screwing and fitting alone.

■ Arrange three types of cam freely on the program bar to control the movement of the robot.

■ The program bar is set in the center of the robot.
Mechanically read the cam and move the steering leg.

【2 basic movements】
In the mechanism of movement, the cam pushes down the steering leg attached to the bottom of the main body, floating the crawler and changing the movement.
There are two types of basic movement patterns.
The A type advances if there is no cam and turns if there is a cam on one side (it turns to the left if there is a cam on the left), and stops if there are cams on both sides.
If there is no cam, B type turns to the left on the spot. If there is a cam on one side, go forward and reverse (go forward if there is a cam on the left, move backward if there is a cam on the right), stop if there are cams on both sides .
Switching of the pattern has wiring change of the motor and there is no boots parts of the steering leg.
Also, you can prepare three kinds of cams and change the time to push the leg down.
In addition, it is possible to add a gear box etc by attaching the universal plate, it is also possible to control the movement by mounting a commercially available microcomputer board or board.

【Basic Specification】
● Total length of about 136 mm at completion, about 128 mm in width, about 116 mm in height
● 130 with 2 motors.
● Easily assembled with screws and fitting without using adhesive
