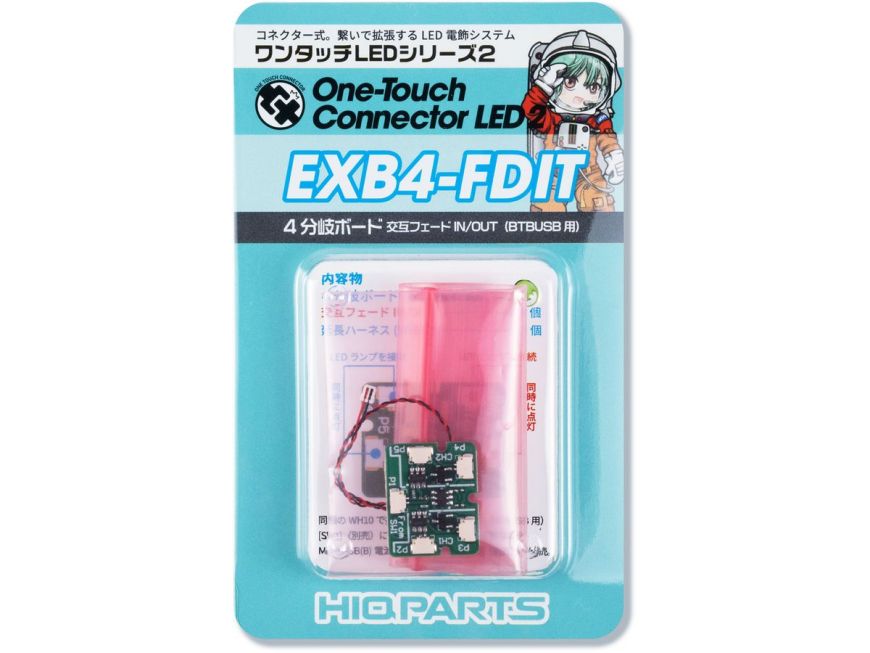

HI Q PARTS One-touch LED Series2 4-branch Board Alternate Fade IN / OUT (for BTBUSB) (1pcs)

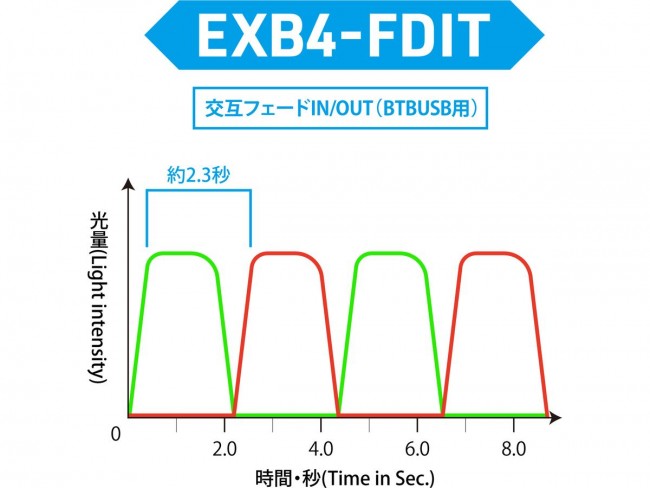

Program board for alternating lighting. 2-color switching is recommended. Program board to light connected LED lamps (sold separately) alternately. LED lamps (sold separately) connected to [P4/5] and [P2/3] light up while fading in and out. In approximately 2 seconds, [P4・5][P2・3] will light up alternately. MicroUSB(B) power supply board [BTBUSB] (sold separately) and LED lamps (sold separately) are required in addition to this product for lighting. [P2, 3, 4, 5] jacks are for LED lamps. [P1] jack is for [BTBUSB] or switch addition board (for BTBUSB) [SW1]. If you need ON/OFF function, please add [SW1]. For more information, please browse the connection examples on the website: https://hiqparts.info/oled2 Contents 4-branch board, alternating fade IN/OUT ... 1 piece Extension harness (WH10) ・・・ 1 piece The One Touch LED Series 2 is a specially designed LED decoration system for model embedded applications. The necessary functions are concentrated on a small, thumb-size board, and functions such as power supply, switches, branching, and programmed blinking can be added simply by connecting the necessary boards together. Since the system is based on USB power supply, it is suitable for long-term use in exhibitions and diorama applications. This series is easy to reconnect the wiring and reduces problems during electrical decoration work, which often involves trial-and-error.
