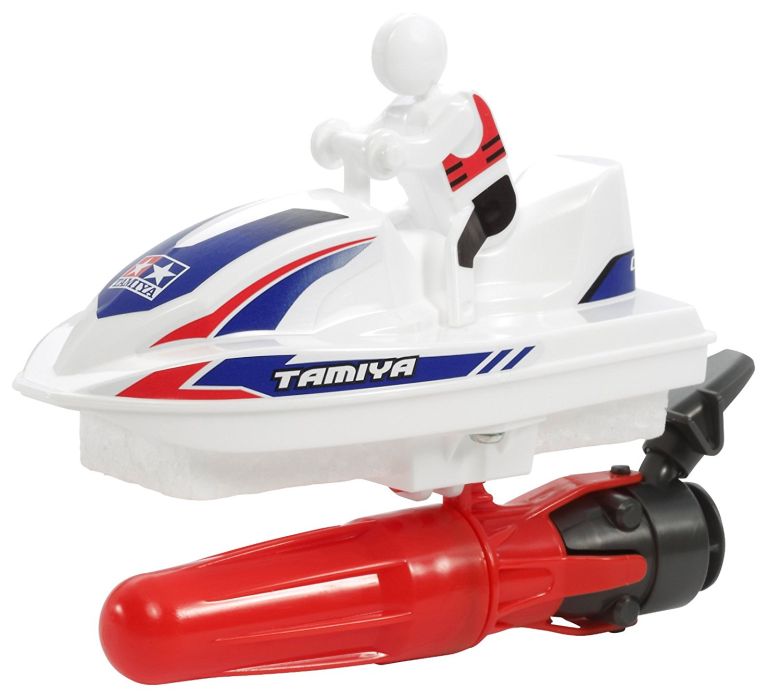

Tamiya WATER SCOOTER Working Set

Work / Experiment kit Full length = approx. 128 mm

【Proceed while blowing water with a centrifugal pump! 】
It is a work set that imaged a popular water bike as a marine sports.
Equip a centrifugal pump at the rear of the underwater motor and proceed while blowing out water.
As the impeller (impeller) inside the centrifugal pump rotates, the water taken from the center is accelerated by the centrifugal force and spurt out of the rudder.
The speed can be adjusted by moving the rudder up and down, the direction of travel can be changed by rotating it to the left and right.
The water bike consists of six parts including a float and a rider.
We also set two types of marking stickers.
Also, the power unit of the centrifugal pump and submersible motor can be attached to other work using the attached suction cup.

[Working of centrifugal pump]
With the power of the underwater motor, when the impeller (impeller) inside the centrifugal pump is turned, water flow occurs in the case.
Centrifugal force acts on the flowing water, pressure is applied to the outside of the case, and water is discharged from the discharge port.
At the same time, the water in the case will spill out, so that water will be sucked in from the center in a way that it will be pulled by it and will act as a pump.

【Basic Specification】
● Total length of about 128 mm at completion, about 52 mm in width, about 100 mm in height
● With underwater motor.
● Easily assembled with screws and fitting without using adhesive.
