Tamiya Educational Construction SLIDE ADAPTER (FOR UNIVERSAL PLATE)
Special Price
¥368
Regular Price
¥460
Out of stock
SKU
TAM02343
You will earn 10 Points for writing a review this product. You will earn 11 Points for purchasing this product.Craft / Experiment kit
【Can attach various hole pitch parts to universal plate】

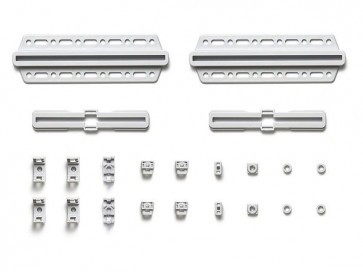

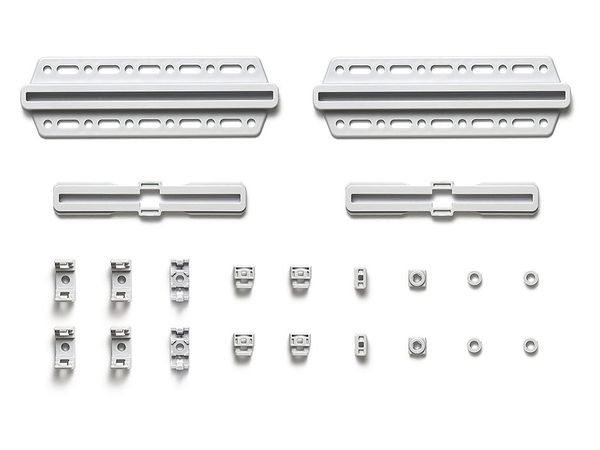

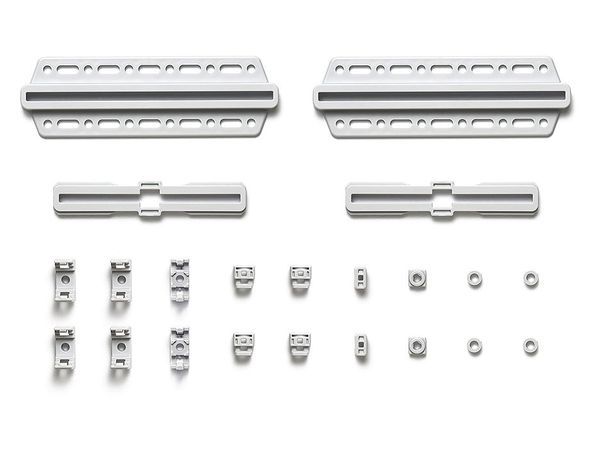

A “base” with a 5 mm pitch hole that can be fixed to a universal plate, a “bar” that can be fixed by freely moving on the slide rail of the base, and a “fixed piece” that can be attached to the bar and positioned freely in the slide rail Constitution.
It is an adapter part that can screw parts of various sizes to the universal plate.
The vertical movement of the bar and the horizontal movement of the fixed frame allow parts with various hole pitches to be mounted, and the mounting angle of the bar can be adjusted.
The maximum mounting width is 72 mm long x 60 mm wide if one base is used, and can be extended vertically if two bases are used.
The minimum mounting width is 17mm by 17mm by using one base.
[Basic specs]
Composed of ABS resin "base", "bar", "fixed frame", etc.
Screws for installation, nuts, etc. are also set.
The information is as of August 02, 2019. Product names, prices, release dates, specifications, etc. are subject to change without notice.
(From the Tamiya website)
【Can attach various hole pitch parts to universal plate】
A “base” with a 5 mm pitch hole that can be fixed to a universal plate, a “bar” that can be fixed by freely moving on the slide rail of the base, and a “fixed piece” that can be attached to the bar and positioned freely in the slide rail Constitution.
It is an adapter part that can screw parts of various sizes to the universal plate.
The vertical movement of the bar and the horizontal movement of the fixed frame allow parts with various hole pitches to be mounted, and the mounting angle of the bar can be adjusted.
The maximum mounting width is 72 mm long x 60 mm wide if one base is used, and can be extended vertically if two bases are used.
The minimum mounting width is 17mm by 17mm by using one base.
[Basic specs]
Composed of ABS resin "base", "bar", "fixed frame", etc.
Screws for installation, nuts, etc. are also set.
The information is as of August 02, 2019. Product names, prices, release dates, specifications, etc. are subject to change without notice.
(From the Tamiya website)
| Release Date | Sep 30, 2019 |
|---|---|
| Package Depth (mm) | 150 |
| Package Height (mm) | 100 |
| Package Width (mm) | 30 |
