Tamiya 1/10 R/C CAR COMICAL GRASSHOPPER (WR-02CB CHASSIS) japan NEW

It is an assembly kit of radio controlled racing car.

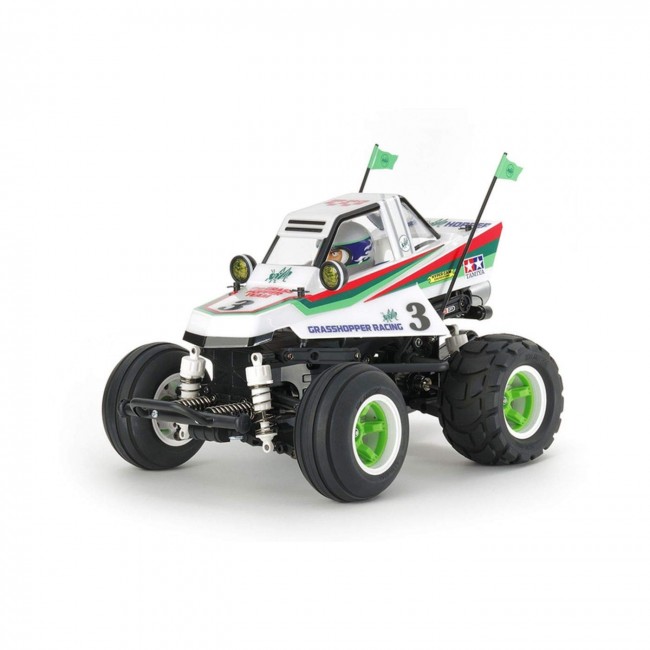

Total length = 356 mm The picture shows the kit assembled and painted

【Popular Grasshopper turns into a comical style! 】
Since its introduction in 1984, 2 WD buggy, Grasshopper, who has attracted many RC fans.
It is an assembling kit of an electric radio control car which pretty deformed this glass hopper.
Shrinking the glass hopper back and forth to emphasize the cockpit, the body of the gentle form is made of light and durable polycarbonate.
The stickers for marking and the mask seals convenient for painting the windows are also attached and the paint can be finished easily.
Moreover, I am uploading more comics with two antenna pole reminiscent of the antennae of the grasshopper and two megaphone muffler which raises the power when seeing from the back.

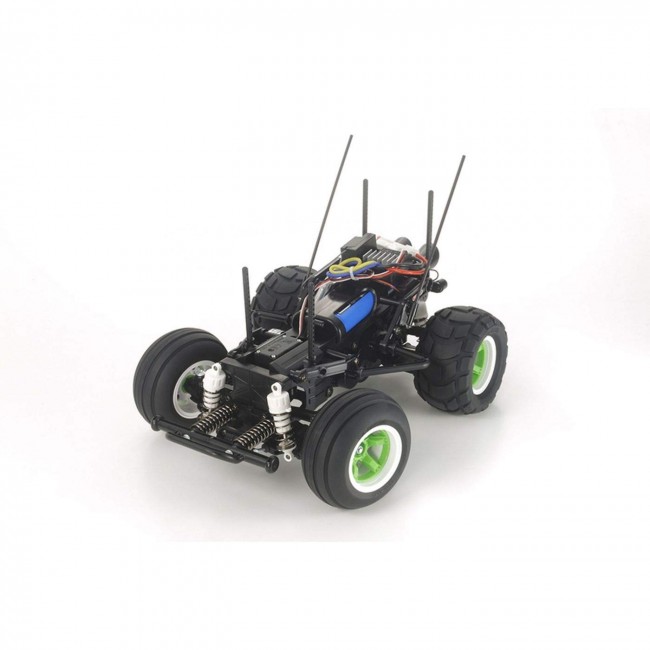

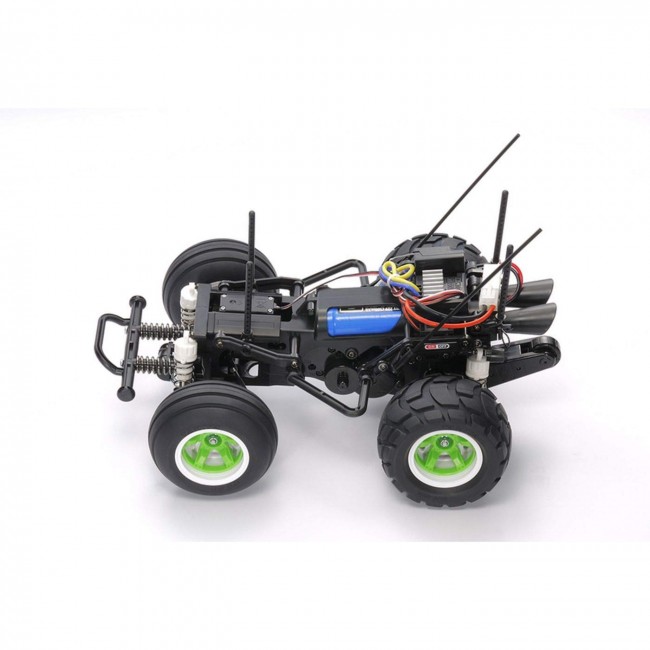

The chassis is rear wheel drive WR - 02CB.
From paved roads to uneven offroads you can play anywhere, just grasp the throttle lever for the transmitter, you can also run wheelies that lifted the front wheels.
In addition, you can incorporate an optional LED to light the lights, or you can enjoy setting up and upgrading with optional parts for WR - 02 that are rich enough.

【WR-02CB chassis with rear wheel drive packing the fun to run
The chassis adopted WR - 02CB based on rear wheel drive WR - 02.
By devising the mounting position of the motor and the battery, it is easy to run, you can easily make it a wheelie, and you can choose a place to run from on-road to off-road.
In addition, it is a point that the gear case which is a little troublesome in assembly is completed with the motor attached.
Around the legs you can run a long suspension arm and a CVA oil damper and run safely on rough off-roads.
In addition, side chassis side guards set a side guard that protects the motor from falls by any chance, and brings out the buggy's appearance.
Wheelie bar attached to the rear not only prevents falling when you do a wheelie, but also adjusts the wheeling by changing the mounting angle.
The combination of green and white eye-catching wheel has a two-piece structure, which helps to create a nervous run.
In addition, the tire has a highly straight patterned rib pattern on the front and a round block with grip on the rear.
Round and unique shape bubble tire makes the comical mood even more exciting.

【Basic Specification】
Overall length 356 mm, full width 244 mm, total height 195 mm
● Wheel base 170mm
● Car weight = approx. 1260 g (excluding RC mecha ・ battery)
● Motor = 540 type
● Drive system = rear wheel two wheel drive
● Tire Width / Diameter = Front 46 / 95mm, Rear 56 / 98mm
● Tread = Front: 189 mm, Rear: 186 mm
● Frame = resin monocoque type
● Differential gear method = 3 bevel diff
● Steering Tie Rod = 2 split
● Suspension (both front and rear) = Double wishbone
● Damper = CVA oil damper
Gear ratio = 1: 18.3

【What you need separately】
● FineSpec 2.4G electric RC drive set
● Four AA size batteries for transmitter

・ Form boldly deformed the glass hopper.
I made it a sharp impression even in the cuteness.
・ The two antenna pole where the tip flag keeps on the wind and the round bubble tire has a lot of comical charm.
- The chassis is strong and easy to run WR - 02 base is based on WR - 02 CB.
You can enjoy the wheelie just by starting suddenly.
・ Double wishbone 4-wheel independent suspension adopting long suspension arm.
The installation position can be chosen for CVA oil damper.

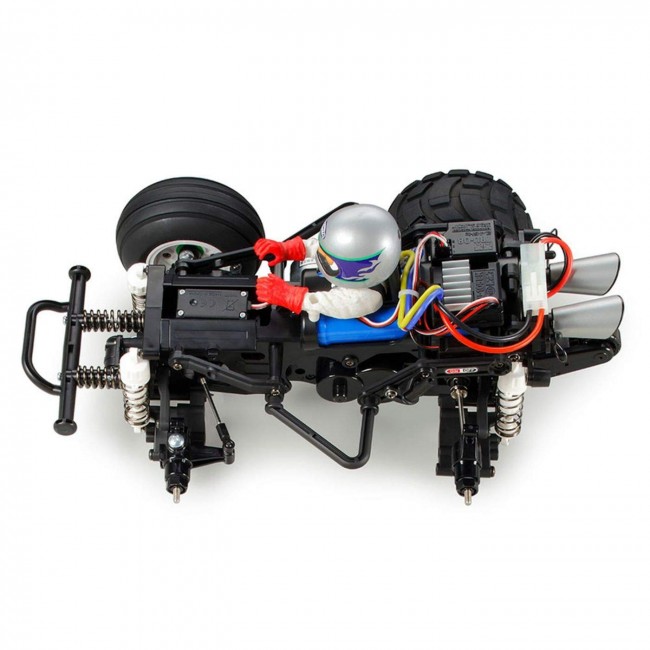

- Set a motor in the center of a slim monocoque frame with the battery installed vertically, and transmit power to the rear wheels with gears.
The gear case is assembled with the motor mounted.
・ Equipped with side guards to protect the motor from a fall.
With a driver doll wearing a helmet.
- Wheelie bar at the rear of the chassis prevents falls during wheelie running.
A large caliber megaphone muffler enhances the running atmosphere.
- A 5 mm LED light unit (sold separately) can be mounted on the body upper part and rear end light case.
You can enjoy dressing up.
- The attached stickers are printed with two types of driver helmet markings and illustrations of comical glass hopper.
- The gear case which takes a little time to assemble is completed.
It is also recommended as an entry model of the RC kit.
・ It is a fun machine even if you run with your family and friends.

(From Tamiya website)
