Tamiya 1/18 RC KONGHEAD 6X6 - G6-01 CHASSIS japan NEW

It is an assembly kit of radio controlled racing car.

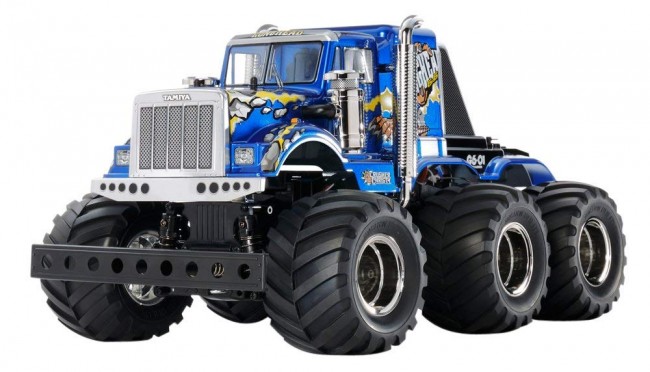

Total length = 453 mm The picture shows the kit assembled and painted

【Crazy for high rough road running ability and powerful finish】
It is an assembly kit for electric radio control car, which is pleasantly high petroleum running performance and comical finish unique to 6 wheel drive.
The body which imagined a powerful American trailer head featuring angular bonnet, upright radiator grille, large sleeper cab, is made of polycarbonate.
It is a finish with a sense of scale that makes air cleaners and mufflers separate parts of plating parts.
In addition, we have included a sticker for illustration and graphic marking to produce a custom mood, as well as a masking sticker convenient for painting windows.
The chassis is 6-wheel drive G6-01.
Climb steep slopes of 40 degrees by the high driving force and long wheel base unique to 6WD.
The figure that six big tires raise the sand smoke is overwhelming force.
It is an attractive off-road machine that makes you crazy, choosing a place to run with high running performance and stability.

【G6-01 chassis that produces outstanding runnability unique to large diameter tires & six wheel drive】
The chassis is G6-01 of the gear drive 6WD.
It adopts a high-strength monocoque frame while having a slim shape, which is characterized by using gears for power transmission.
The motor is mounted behind the front axle, and the gear transmits power to the front shaft and the second shaft.
Furthermore, the gear train 6WD system which transmits power from the 2nd axis to the 3rd axis also with the gear.
You do not choose a place to demonstrate outstanding driving power and run.
Also, the gear case is integrated with the frame.
It is a sealed type that shuts out sand and pebbles, and it creates smooth cornering by equipping three shafts with a differential gear respectively.

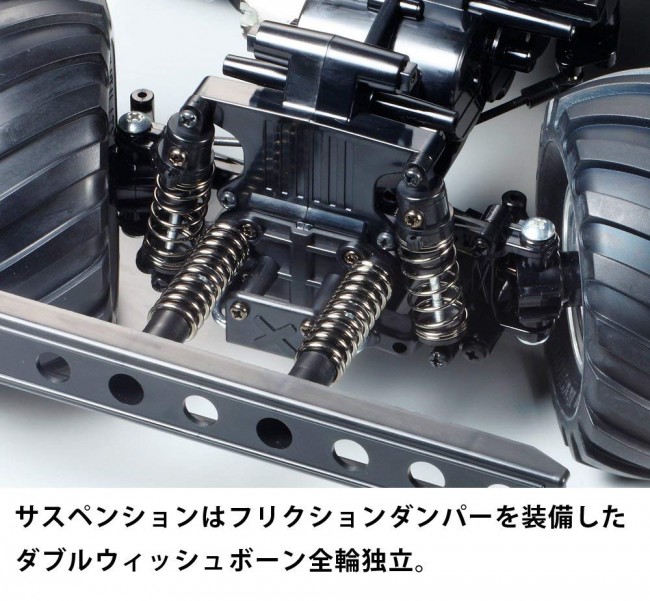

Suspension is a double wishbone all-wheel independent with friction damper.
I attached a large diameter tire with a diameter of 113 mm to the deep rim wheel of chrome plated finish.

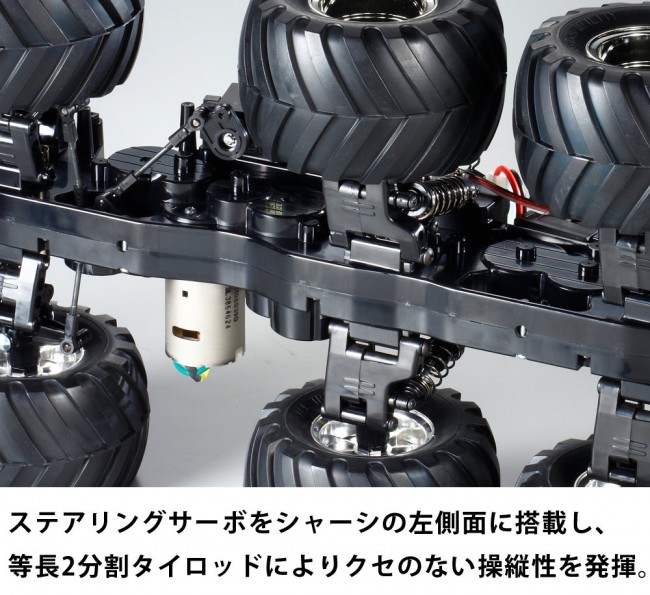

The steering servo is set on the left side of the chassis and exhibits unprecedented handling characteristics by equal-length two-part tie rods.
Furthermore, it is also possible to steer the 3rd axis using the suspension part change and the 4WS compatible RC propo.

Suspension is a double wishbone all-wheel independent with friction damper.

The steering servo is mounted on the left side of the chassis, and equal length two divided tie rods demonstrate unprecedented maneuverability.

Slim monocoque frame.
Gears are used for power transmission, and a gear box is integrated with a frame.

【Basic Specification】
● Total length 453 mm, full width 270 mm, total height 234 mm
● Wheel base 173 + 126 mm
● Tread = 200 mm for all 3 axes
● Tire width / diameter = 6 wheels 68 mm / 113 mm
● Frame = Monocoque type
● Drive system = Gear drive 6WD
● Differential gear method = 3 bevel diff
● Steering Tie Rod = Equal length 2 split
● Suspension = Double Wishbone All-wheel independent
Gear ratio = 18.03: 1
● Motor = RS 540 type
● Speed ??controller = ESC specification (sold separately)

【What you need separately】
● FineSpec 2.4G electric RC drive set
● Four AA size batteries for transmitter

(From Tamiya website)
