Wave Wave Parts Tool Series HG AIR TANK POT japan NEW

Modeling / Modeling auxiliary tools

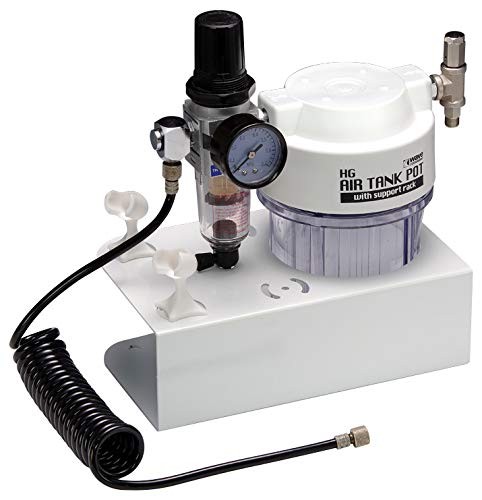

HG air tank pot [with dedicated support rack]

Air tank made of reinforced plastic without worrying about rusting!

-A set of an air tank pot and a dedicated rack that can be attached to an air compressor to store air.
-By storing air once in the air tank, it is possible to supply air that suppresses the pulsation (pulse) that occurs during compression.

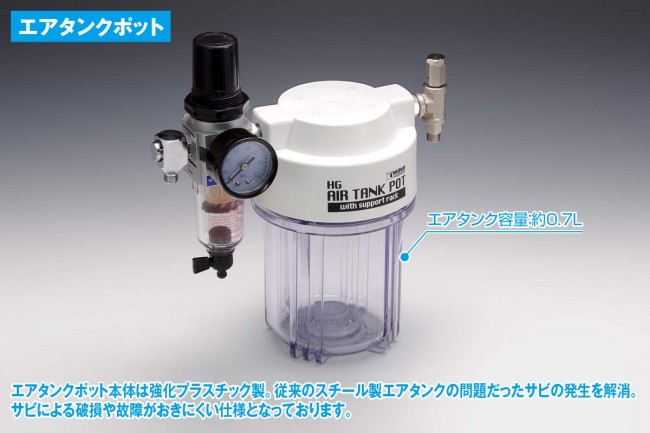

-The air tank body is made of reinforced plastic, eliminating rust that was a problem with conventional steel air tanks.
It is a specification that is less susceptible to damage and failure due to rust.
-The air tank capacity is about 0.7L, which is sufficient for model production and painting.
-A regulator with a pressure gauge with a built-in air filter is set on the air outlet side.

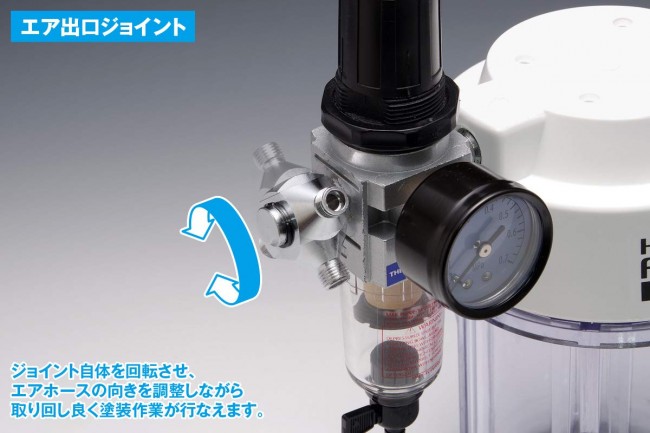

・ The outlet joint of the regulator can be rotated to adjust the direction of the air hose and to perform the painting work well.
-Lightweight and compact size that can be placed on a workbench.

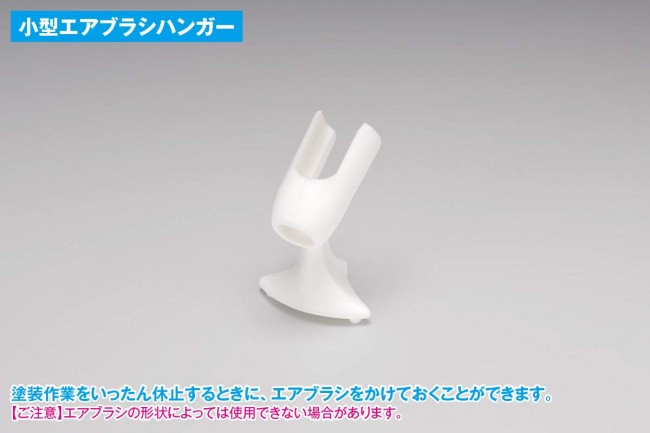

・ Two small airbrush hangers attached to the support rack and one short type spiral air hose are included.

* This product does not amplify the compressor pressure.
Even if it is combined with a small compressor such as our compressor 058 or a compressor with low pressure, it may not be able to realize a sufficient effect.

【please note】
・ The working pressure of this product is up to 0.4MPa. Make sure that the air pressure from the compressor does not exceed 0.4 MPa.
・ If the compressor is not equipped with an automatic pressure switch, or if the compressor cannot be used in combination with an air brush with an air valve, the switch may need to be turned ON / OFF during operation.

[Recommended compressor] equipped with automatic pressure switch

■ Product size
Body diameter: about 110mm
Body width: 215mm
Body height: about 180mm (on the regulator: about 237mm)

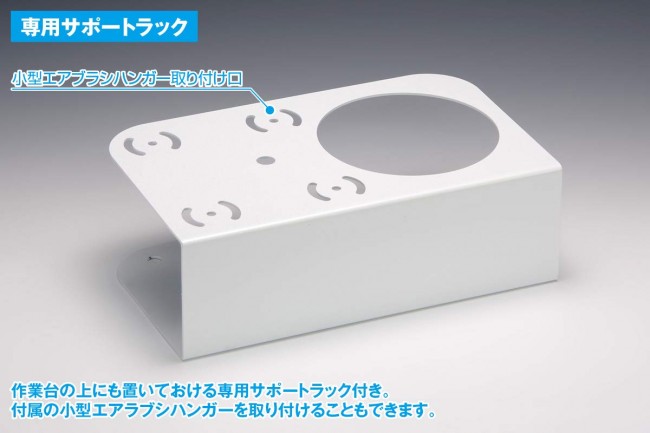

Support rack size (width x height x depth):
Approx. 215 x 71 x 130mm

■ Tank capacity: 0.7L * Reference value
■ Maximum operating pressure: 0.4 MPa or less
* The working pressure of this product is up to 0.4MPa. Make sure that the air pressure from the compressor does not exceed 0.4 MPa.
■ Air inlet / outlet joint: S thread (1/8 type)

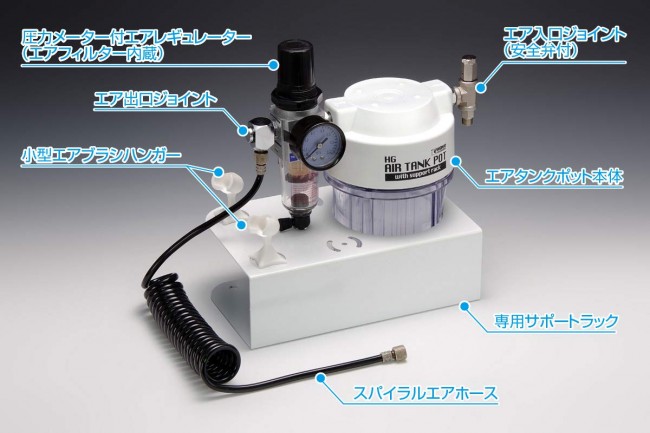

■ Set contents:
Air tank pot body (with regulator)
Dedicated support rack

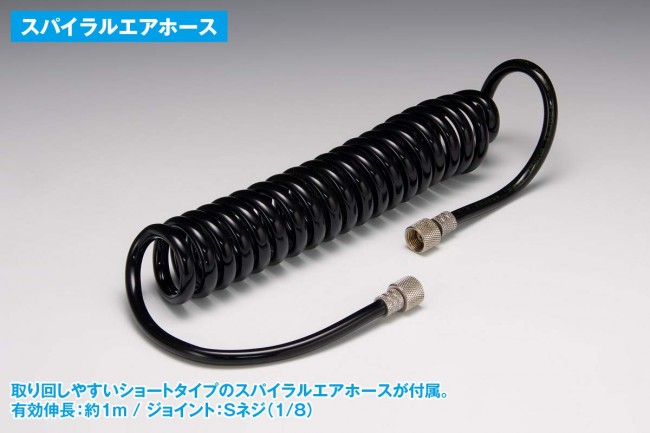

Spiral air hose (effective extension: approx. 1mm)
Simple airbrush hanger x 2 (with screws)

* Images are for development and may differ from actual products.
